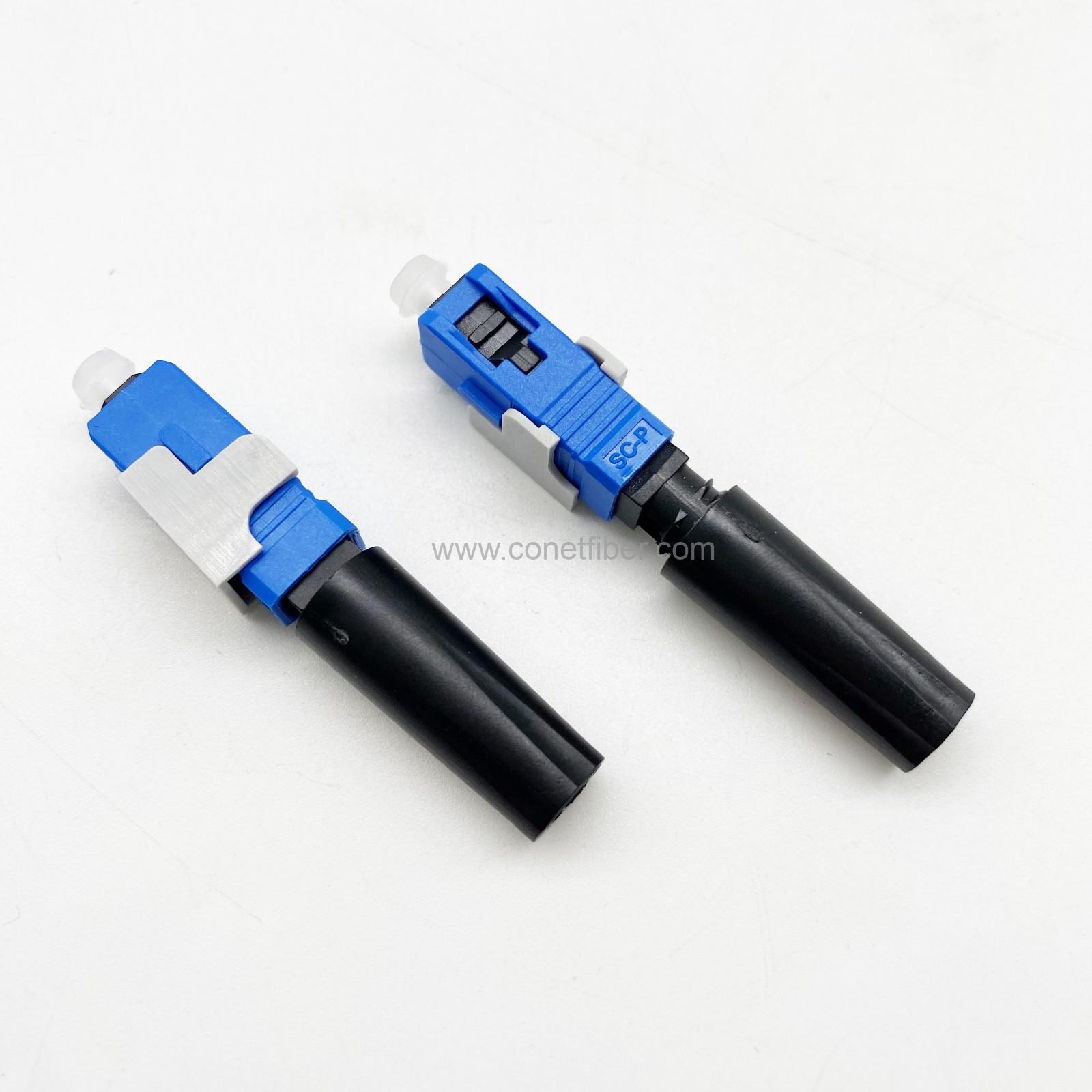

SC-L10 Fast connector
Quick Assembly SC connector can provide quick and easy
terminations of fibers in the field. It allows the installer to
terminate and make connection in minutes at equipment
and fiber patch panels. This connector system with
features of high installation quality, high success rate and
high reliability.
Share:
  • Technology Specs

Item

L10

Length

50mm

Ferrules

SM/UPC / SM/APC

Inner Diameter of ferrules

125um

Insertion Loss

AVG≤0.3dB MAX≤0.5dB

Return Loss

UPC≥50dB / APC≥55dB

Working Temperature

-20~+75

Storage Temperature

-40~+85

Mating Times

500Times

Cable Diameter

2*1.6mm/2*3.0mm /2.0*5.0mm flat drop cable, 5.0mm/3.0mm/2.0mm round cable
