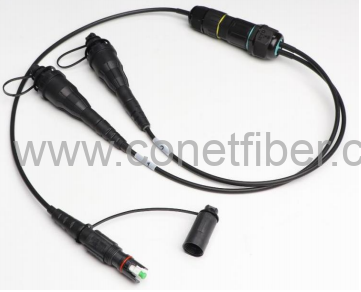

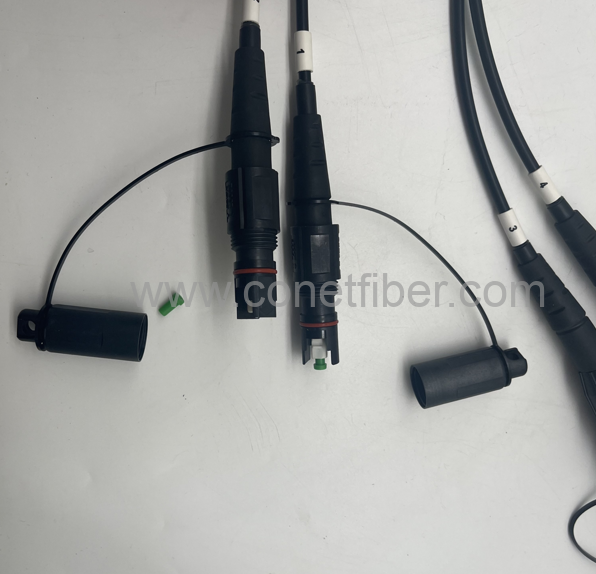

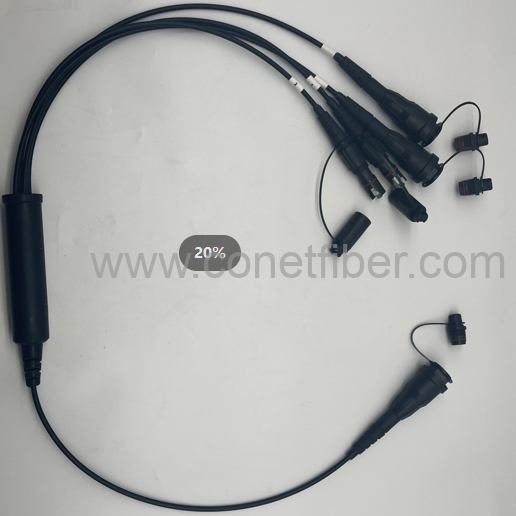

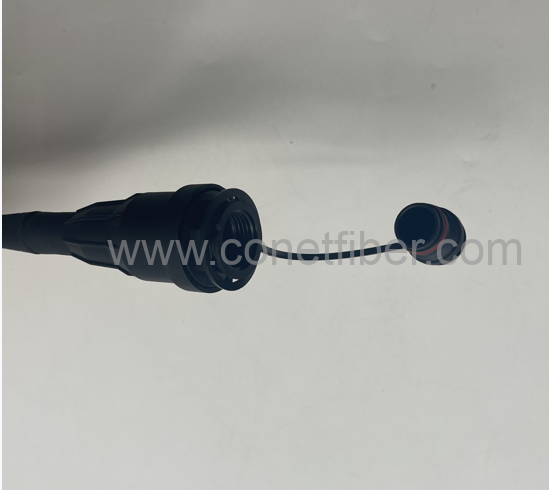

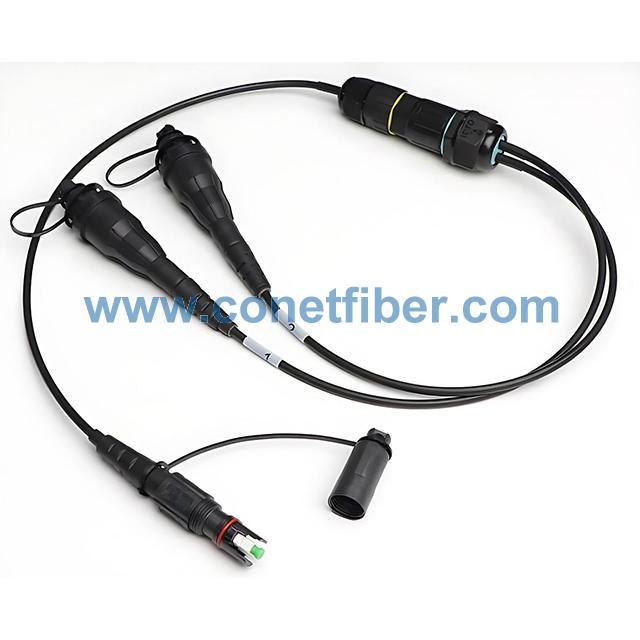

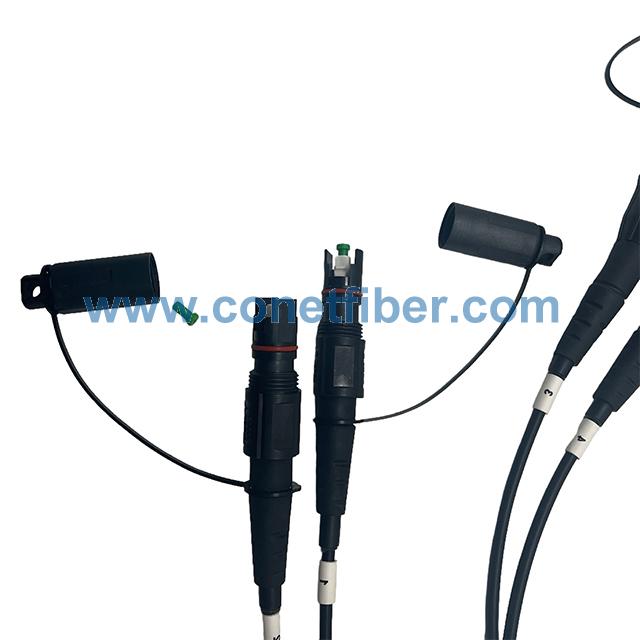

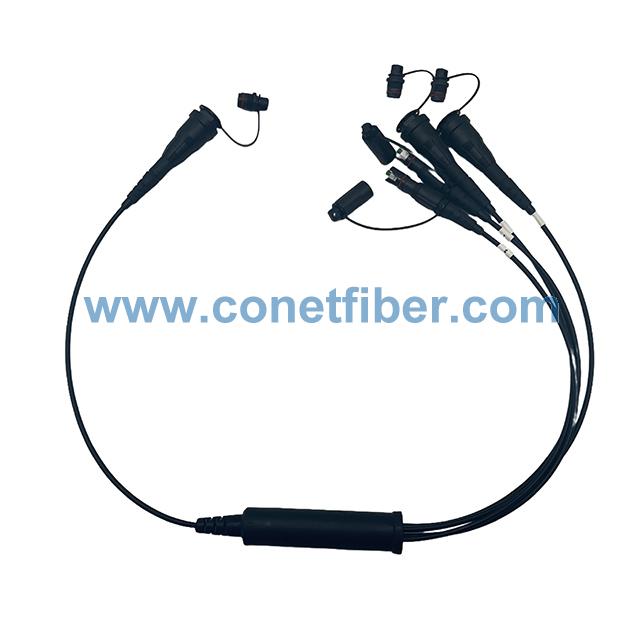

Outdoor Splitter Stap(SC/APC) Solution Specification
1.Compatible with Optitap
2.Low insertion loss and added loss.
3.Height of attenuation.
4.IP68 Waterproofing grade, dust proof and corrosion resistant
5.The material in the jumpel cable are all-weather and UV-resistant. 6.RoHS and REACH materials compliant.
7.Durability:500 matings
8.Operation temperature:-20°C to +70°C
9.Storage Temperature:-40°C to +85°C
10.Stap Connector and Fanout kits tensile force:100N.
Share:
  • Technology Specs

Application
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower applications.

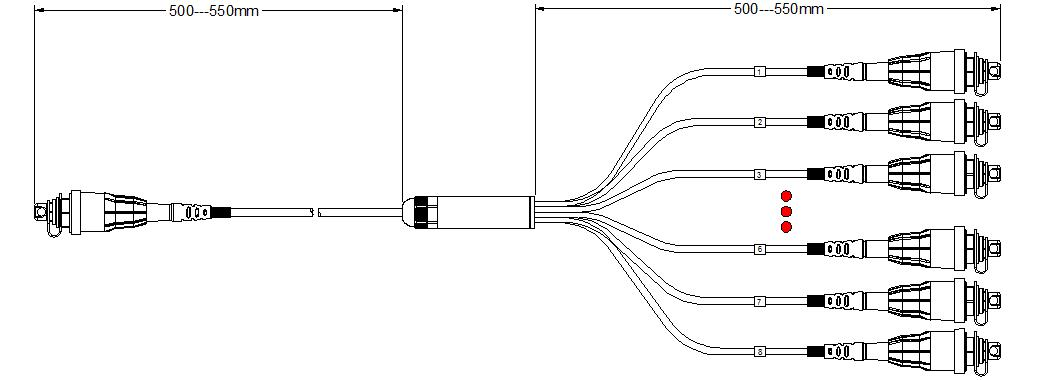

Dimensional Diagrams

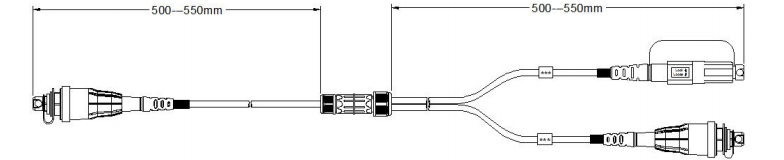

1. Stap(SC/APC) with Connector 1x2 FBT Splitter Outer Cable Assemblies

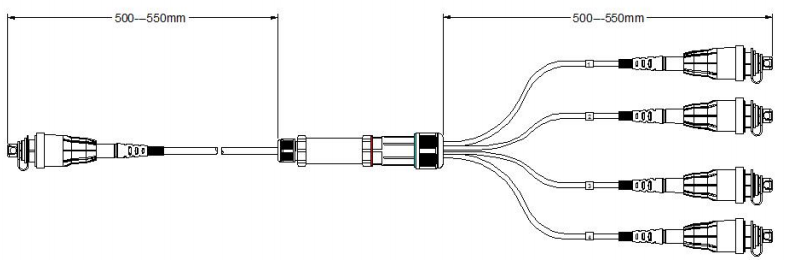

2.Stap(SC/APC) with Connector 1x4 PLC Splitter Outer Cable Assemblies

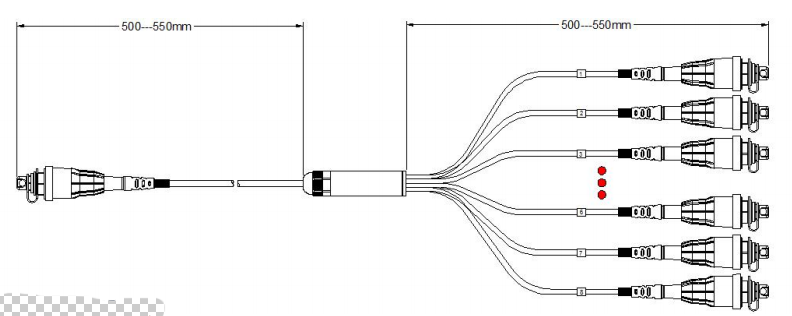

3.Stap(SC/APC) with Connector 1x8 PLC Splitter Outer Cable Assemblies

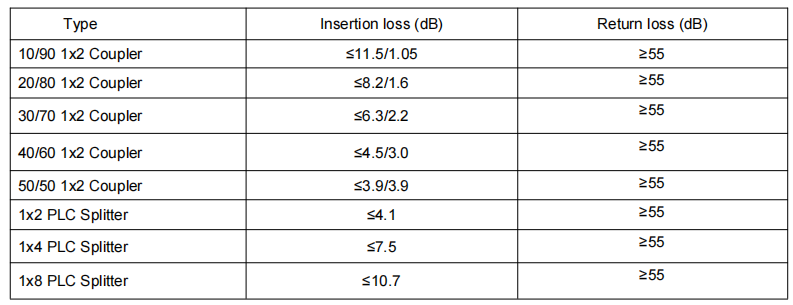

Optical Specifications:
