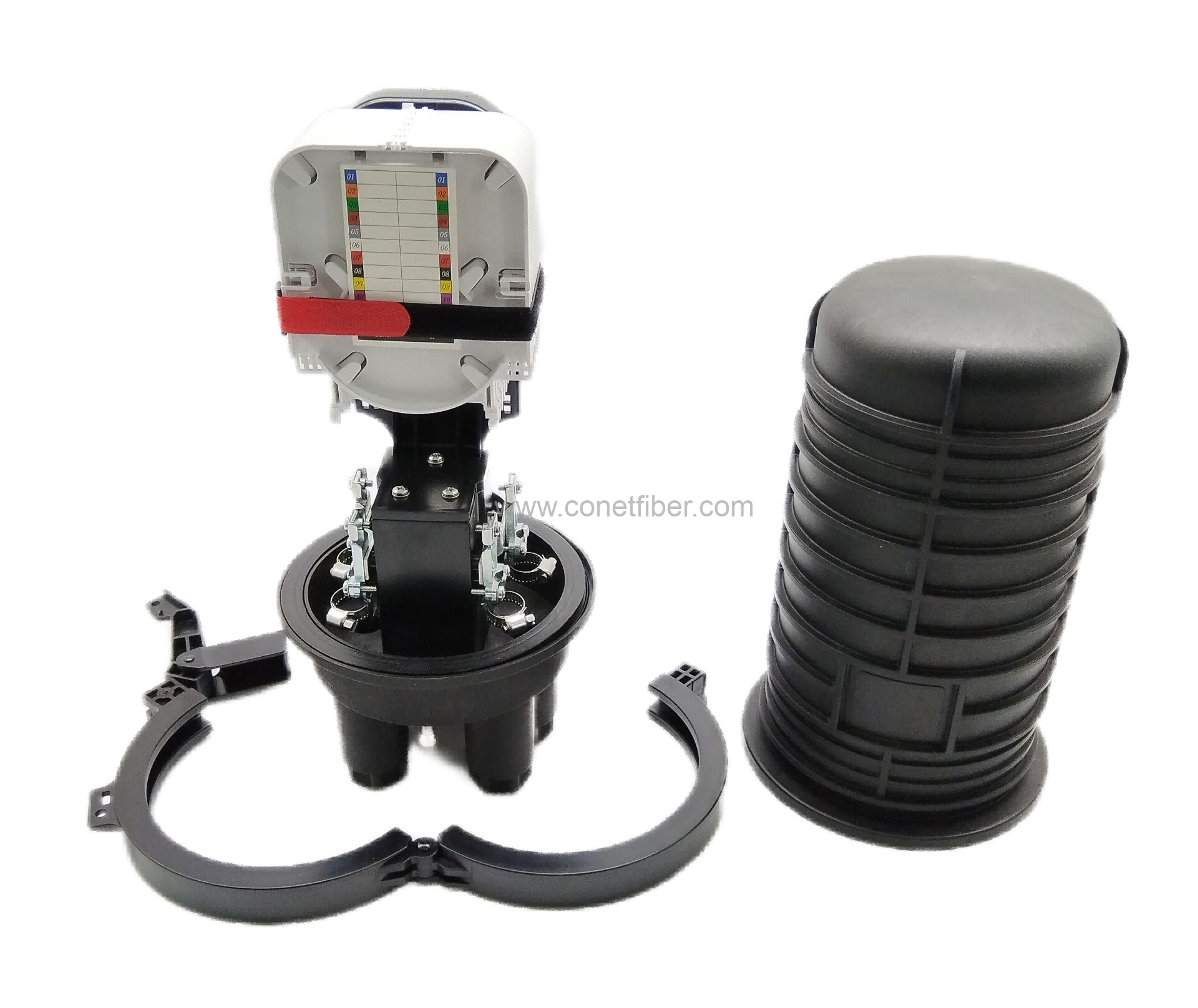

GPJ09-5608
*Compact design and small size, suitable to used in a manhole or pipe line application
* Two types of splice sleeve holders available so can meet different fiber splicing demands.
*Made of modified engineering plastic with high strength, anti impact and anti corrosion.
*Buckles can be added on the splice tray holder so can support drop cable connection.
*Sealing mode: mechanical seal is adopted for cable ports, with protection grade of IP68.
*Splice tray can accommodate 1pc 1:8 mini splitter.
Share:
  • Technology Specs

Model No.

GPJ09-5608

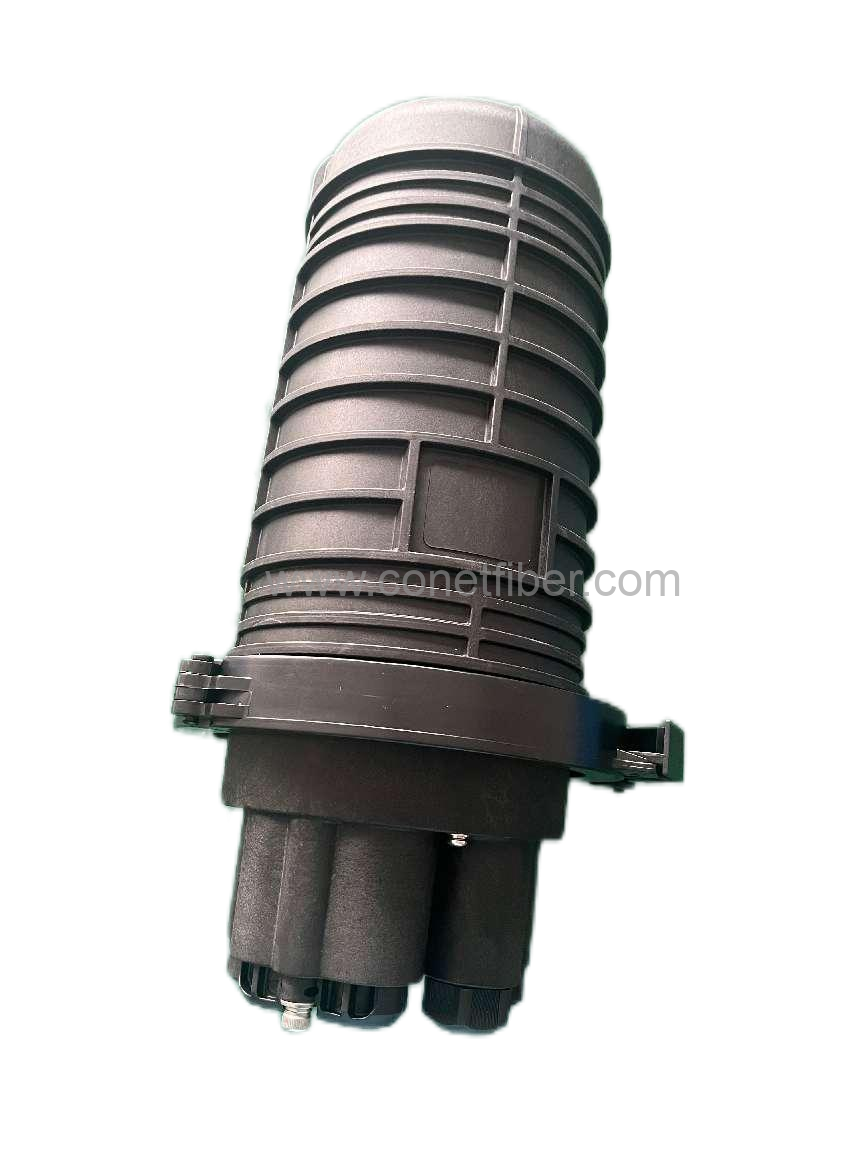

Style

Dome

Dimensions(mm)

395 × Φ225

Weight (kg)

2.5 3.2

Material

PP+GF

Sealing Type

Mechanical Seal

Protection Grade

IP68

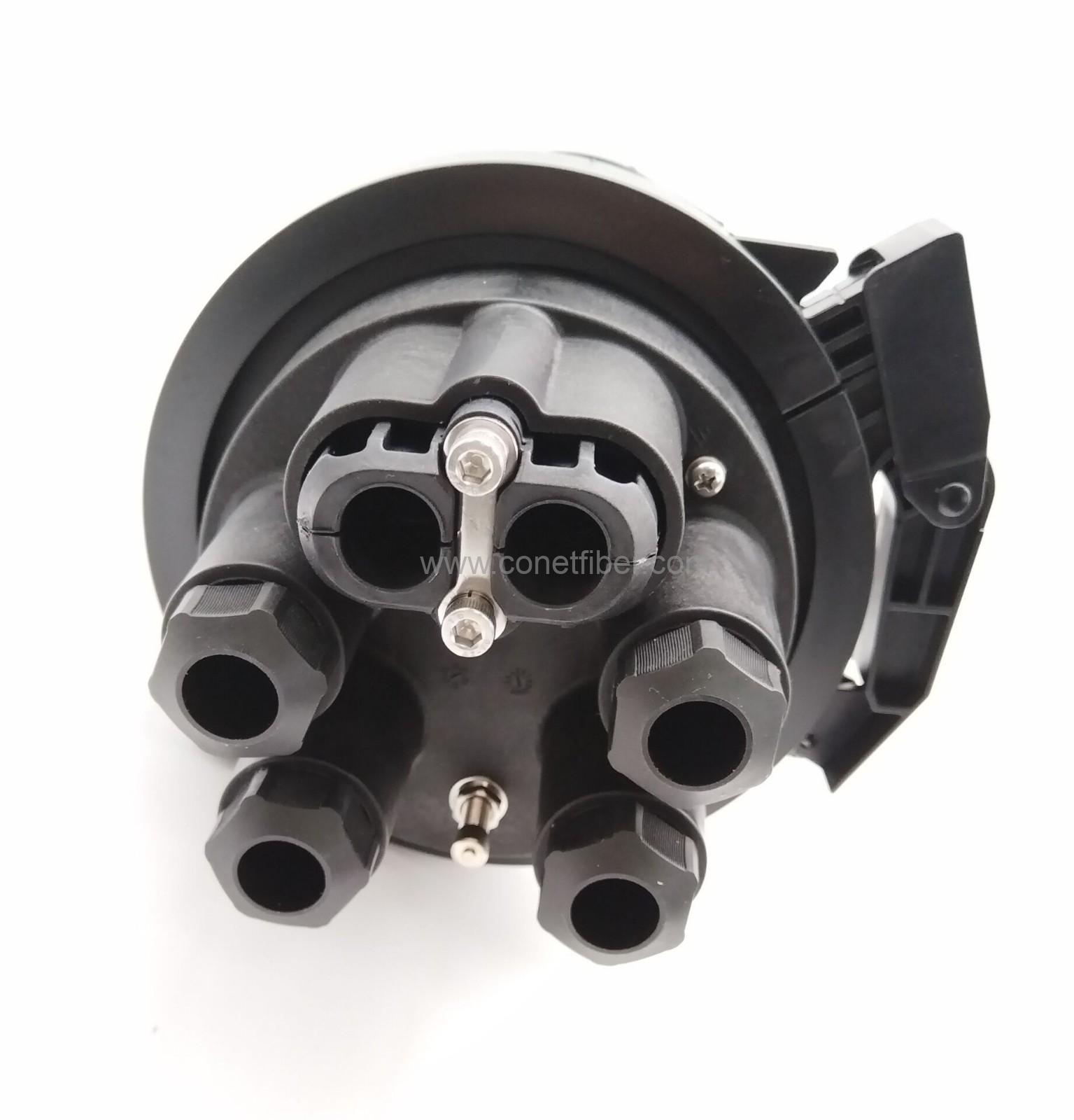

Cable ports

Oval port

1

Φ8 - Φ18 mm

Branch port

4

Φ8 - Φ18 mm

Closure Max Capacity

Single fiber splicing

72F

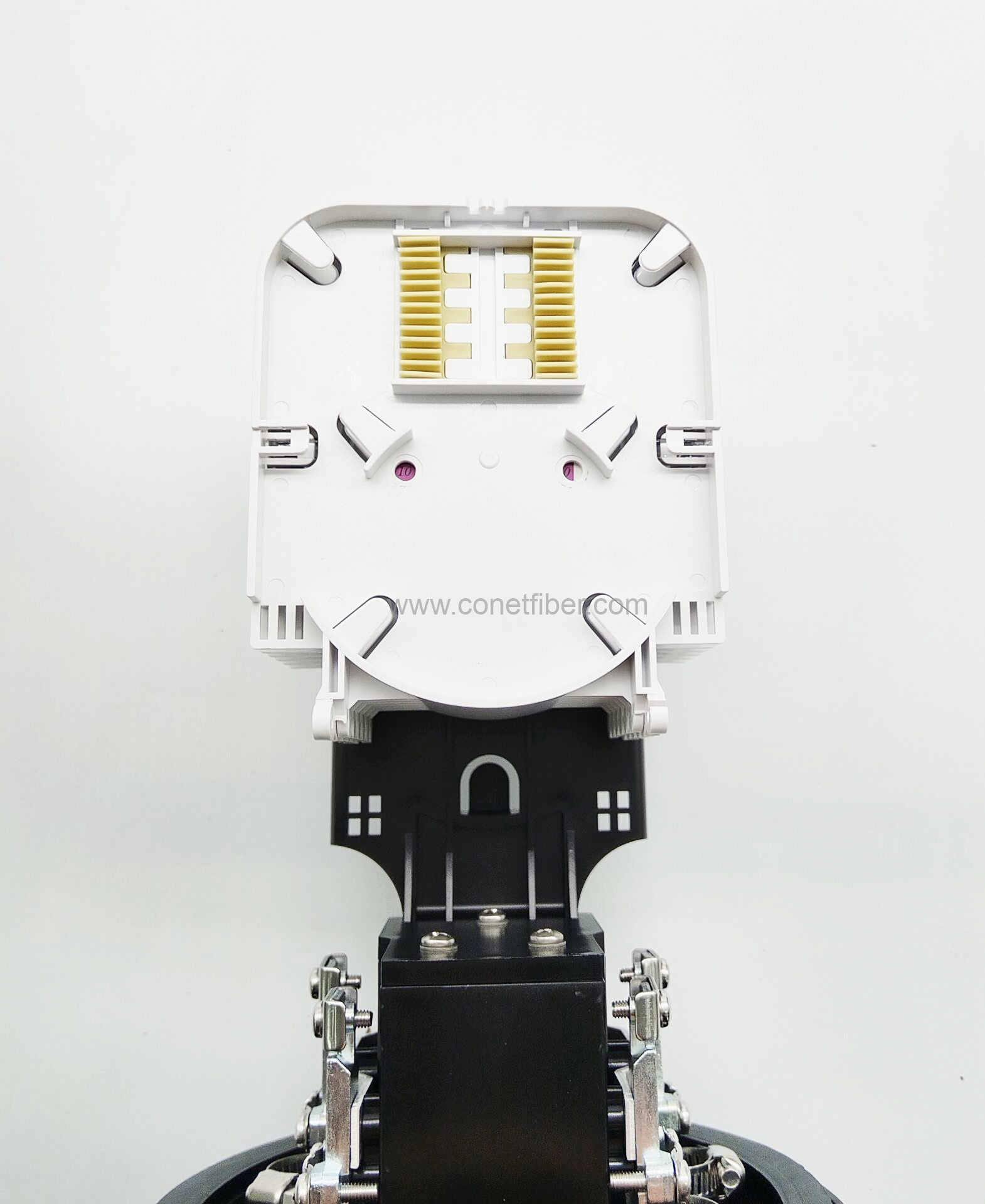

Splice Tray Capacity

6F (two layer)

12F  (single layer)

Max No. tray installed

6pc

PLC Splitter

Mini 1:8 PLC

1pcs

Installation

Aerial, wall, pole, underground, pipeline etc.
