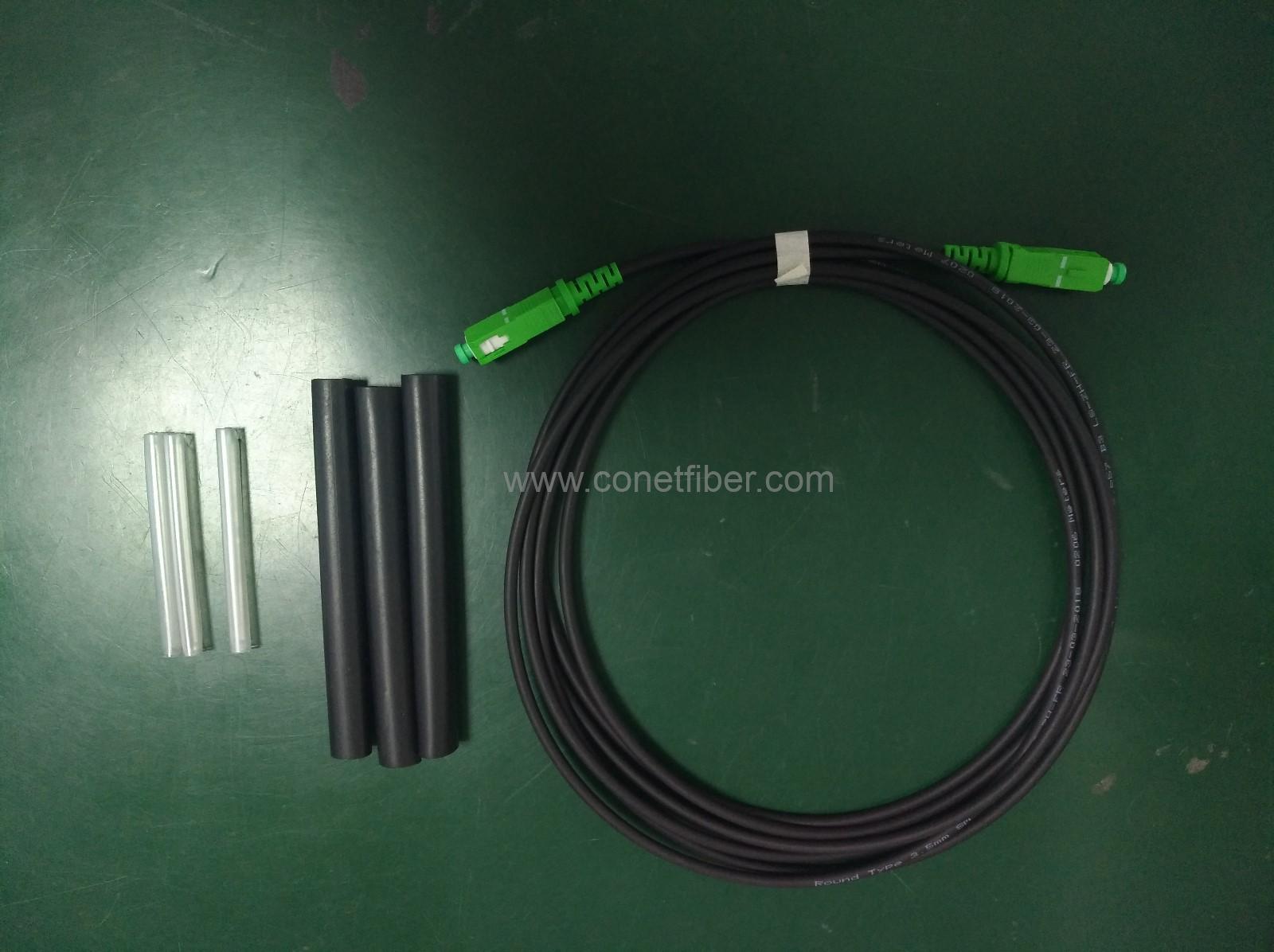

SC APC 3.5mm outdoor cable
Fiber optic patch cord and pigtail can be classified to FC,SC,LC,MU and ST. With the high-quality ceramic ferrules, it has good conformity and low Insertion Loss. And it is widely used in the Telecommunication Networks, Data Transmission, Test Equipment and the LAN of CATV etc.
Share:
  • Technology Specs

No.

Item

Unit

Single Mode

Multi Mode

1

Insertion loss

dB

≤0.3

≤0.3

2

Return loss

dB

PC

UPC

APC

/

≥45

≥50

60

35

3

Repeatability

dB

0.1

4

Working Times

Times

≥1000

5

Operating Temperature

-40~+85

6

Optical Cable Diameter

mm

Ф0.9, Ф2.0, Ф3.0

Item

UPC Polishing

APC Polishing

Schematic Diagram

Ferrule Diameter (mm)

2.5

1.25

2.5

1.25



Radius of Curv (mm)

10~25

7~25

5~12

Fiber Height (nm)

-125~50

±100

Apwex Offset (um)

≤50

≤50

UPC, ≥90% pass 3D

APC, ≥70% pass 3D
