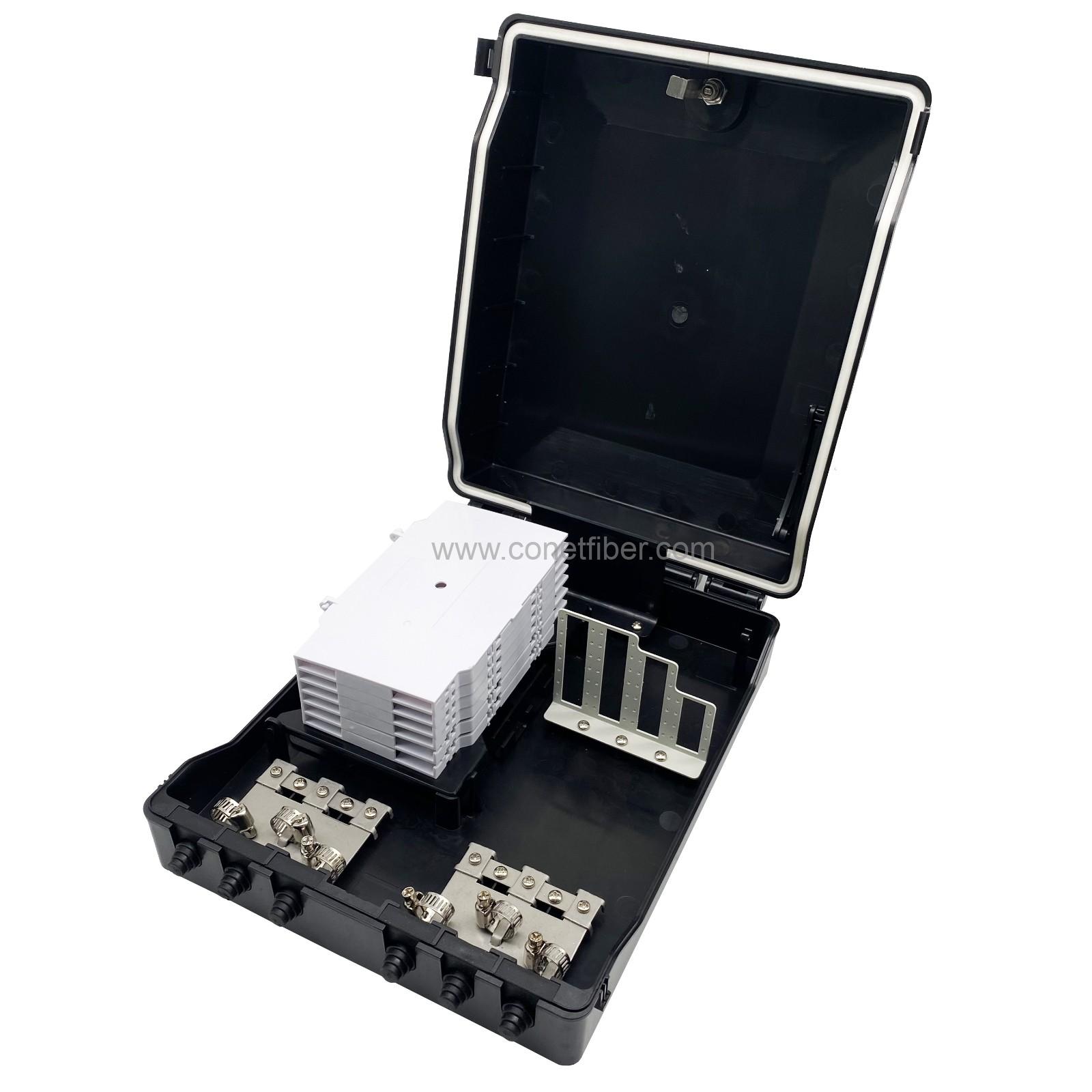

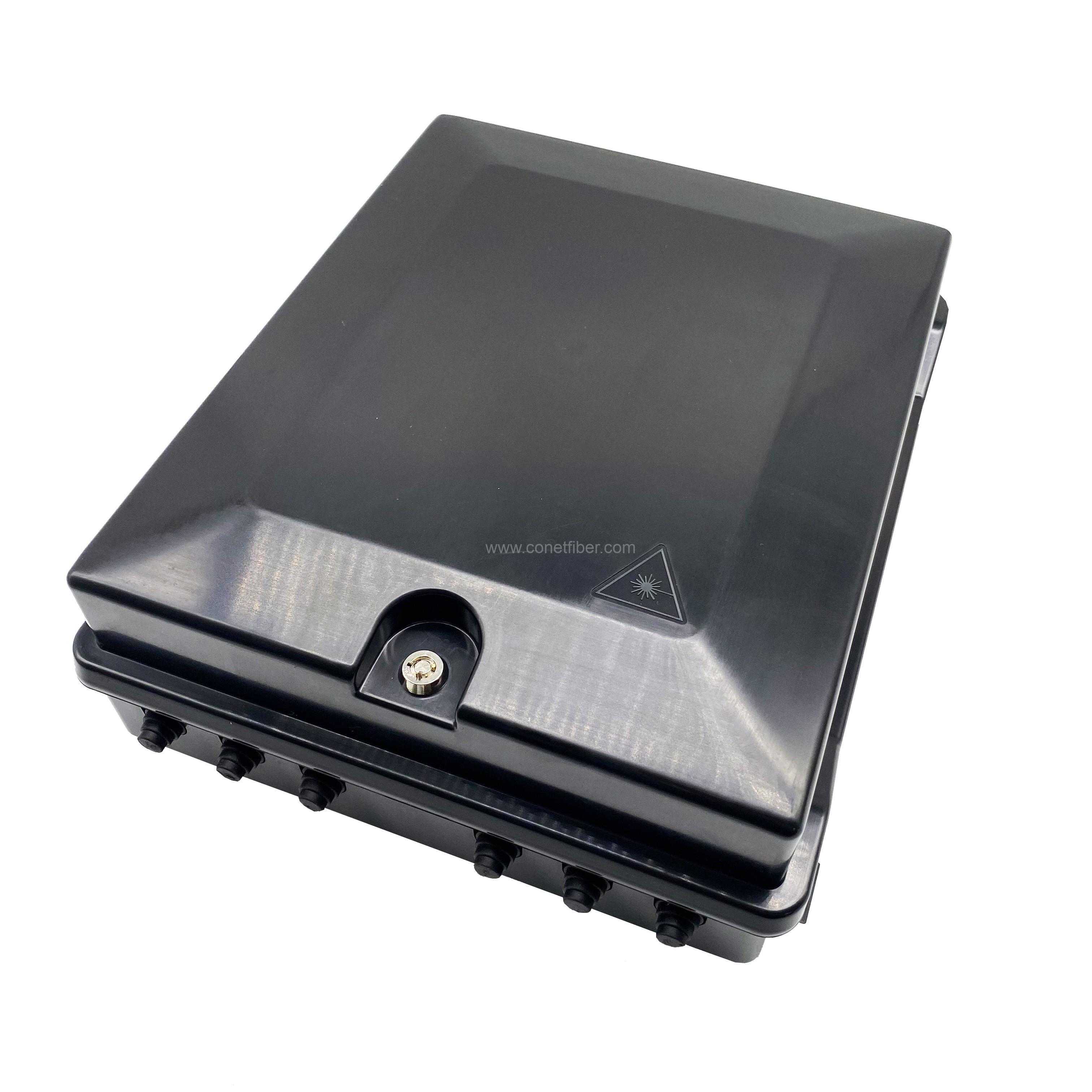

OTB-P046
*Material: ABS plastic + UV
*Structure: Mechanical sealing structure
*IP standard: IP65
*Application: Wall mounted or pole mounted
*Cable ports: 6 ports for φ6-φ12mm cable, support cable entry without cutting.
*Adapter plate: 24 SC simplex adapter ports
*Splice tray Qty: 6pcs splice tray, each tray max. 24 fibers
*Capacity: Max. 144 fibers
Share:
  • Technology Specs
  • Drawings

Model

Dimension(mm)

Material

Adapter port

Splicing capacity

Cable port

Application

OTB-P046

245.6*307.53*103.8

ABS+UV


24 SC simplex adapters

Max. 144 fibers

6 ports

Outdoor wall mounted or pole mounted

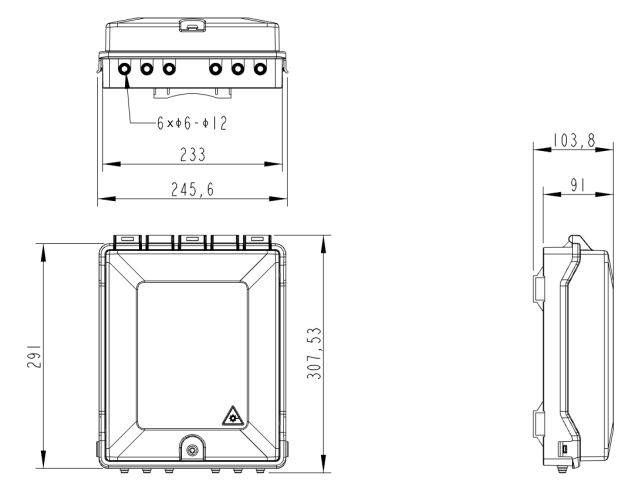

Dimension: (mm)

P046 drawing 1.png

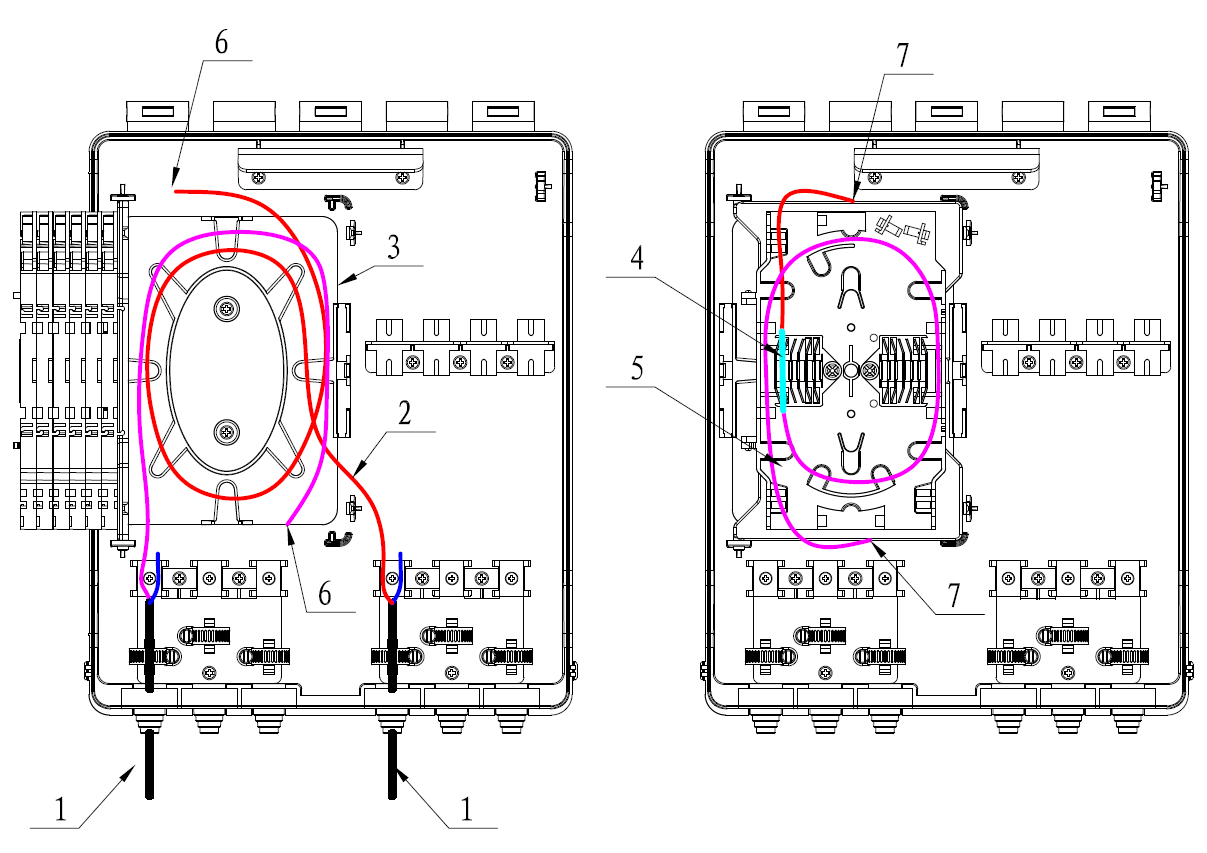

Instruction:

p046 drawing 2.png

1--Input / Output cable  2--Stripped out fiber optic cable   3--Fiber storage tray

4--Heat shrinkable protection sleeve  5--Fiber optic splice tray  6--Fiber to the upper tray  7--Fiber to the lower tray
