J016-1

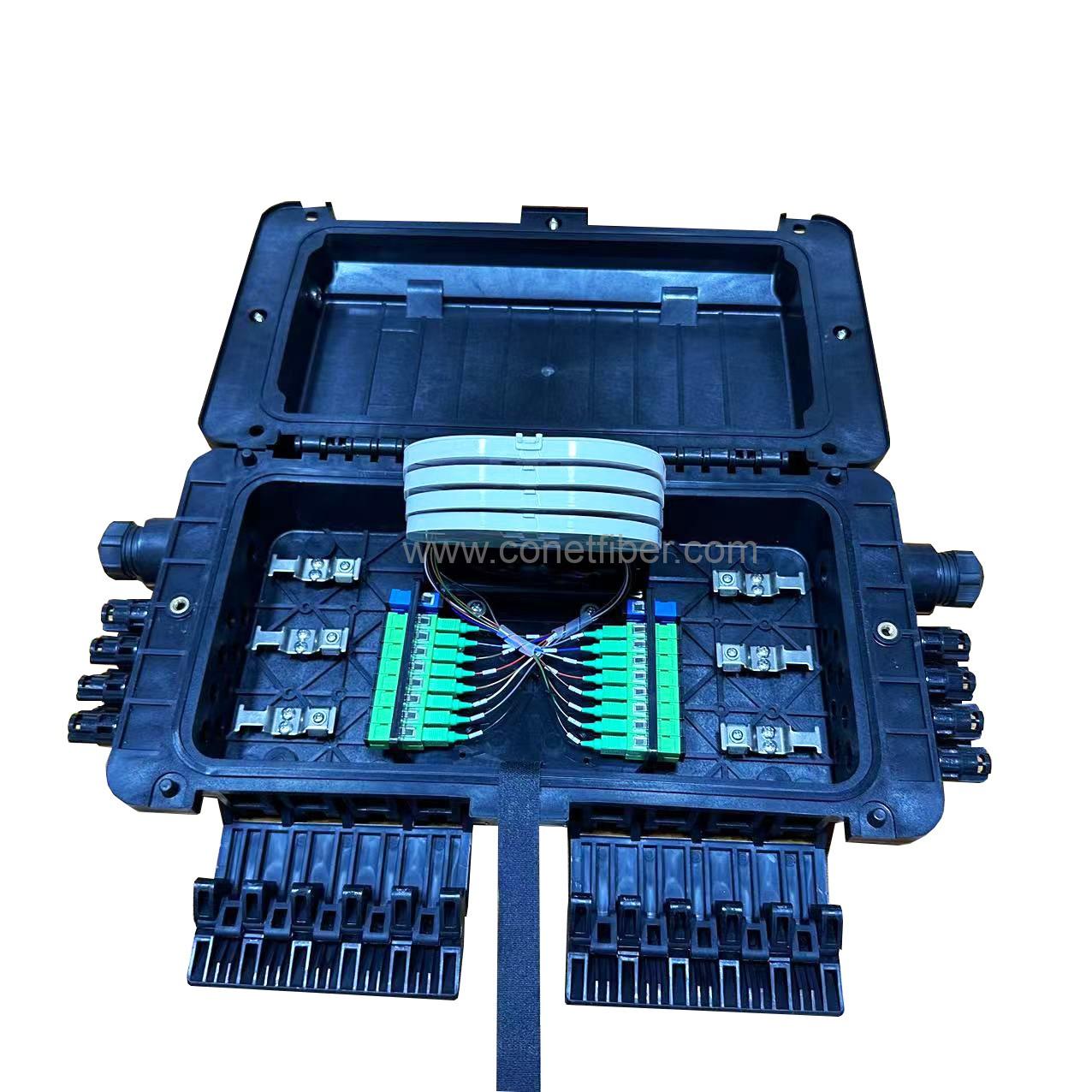

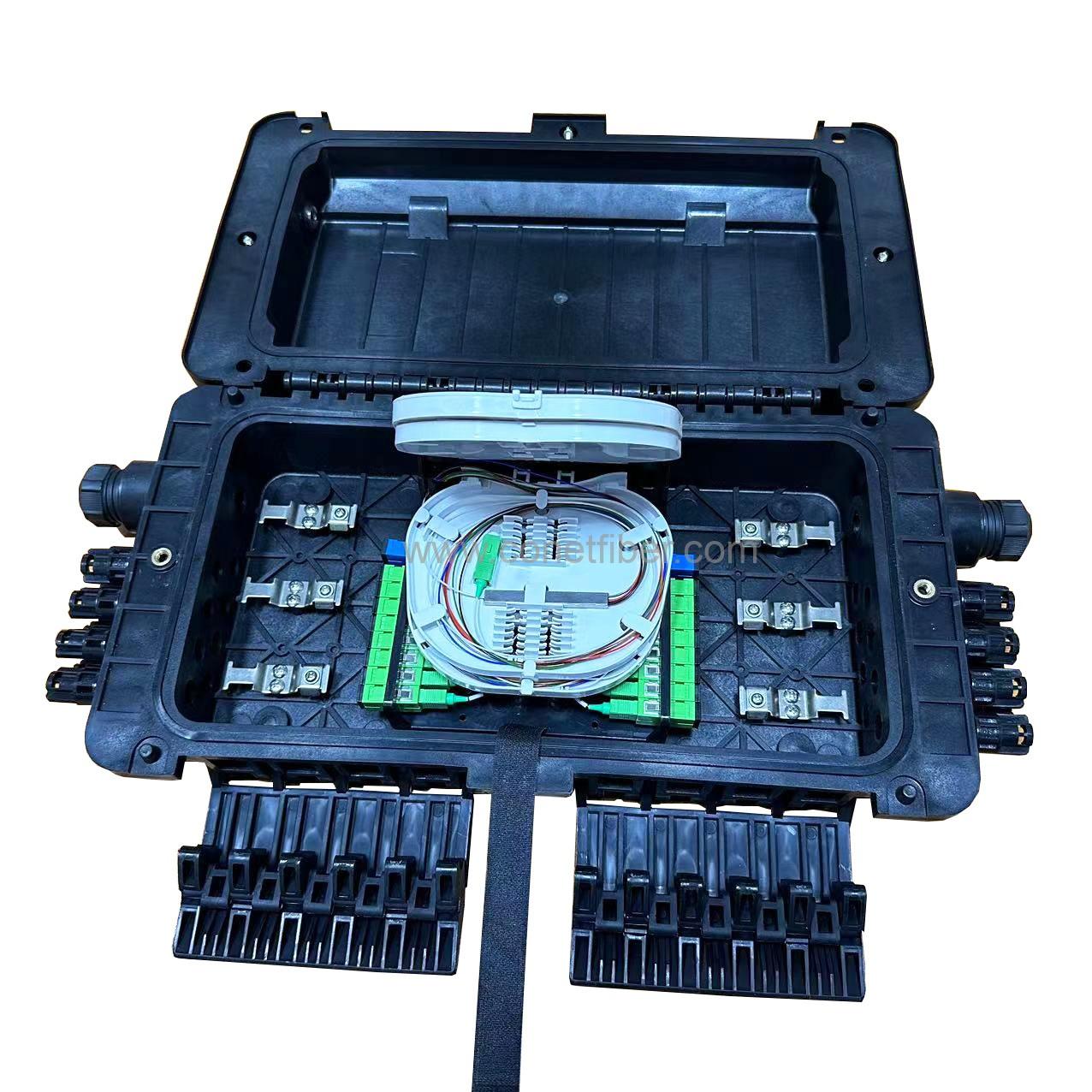

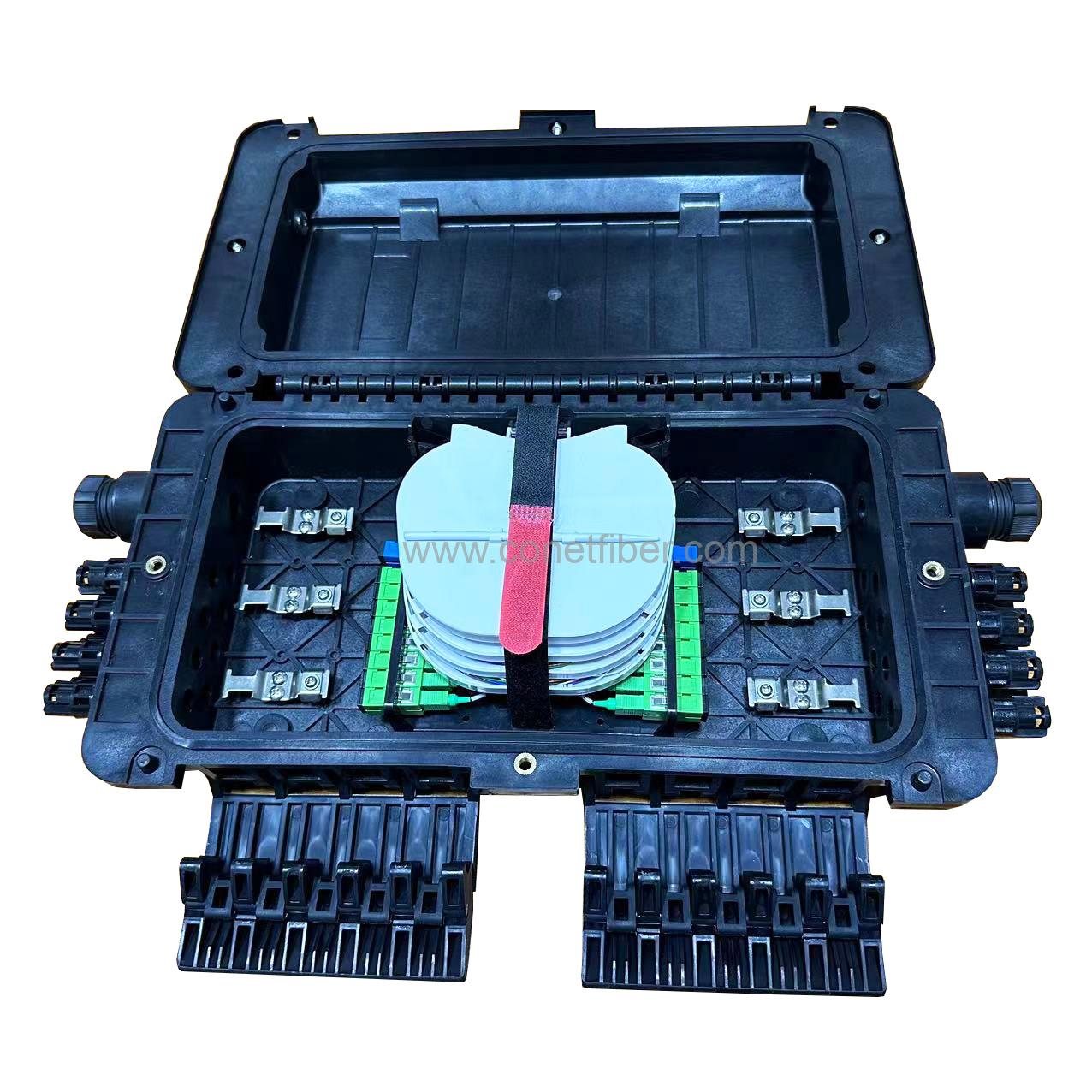

J016-1 is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
Share:
  • Technology Specs

Item

J016-1

Dimensionmm

500×230x110

Material

PC/PP+GF

WeightKg

About 2.85kg

Diameter of Cable(mm)

8-18

No. of Cable Inlet/Outlet

2IN-8OUT

Number of Fibers per Tray

24single core

Max. Number of Trays

4

Max. Number of Fibers

96-core Splice capacity + 2pcs 1x8

Sealing of Inlet/Outlet ports

Mechanical seal

Sealing of Shells

Silicon rubber

Working Temperature

-40deg.C~80deg.C

Protection Grade

IP68
