GFS-8DY

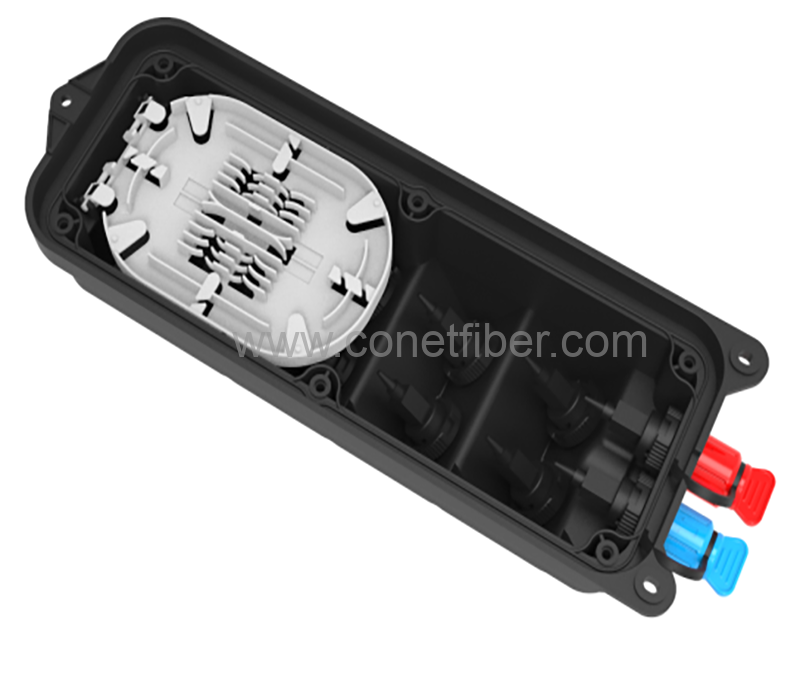

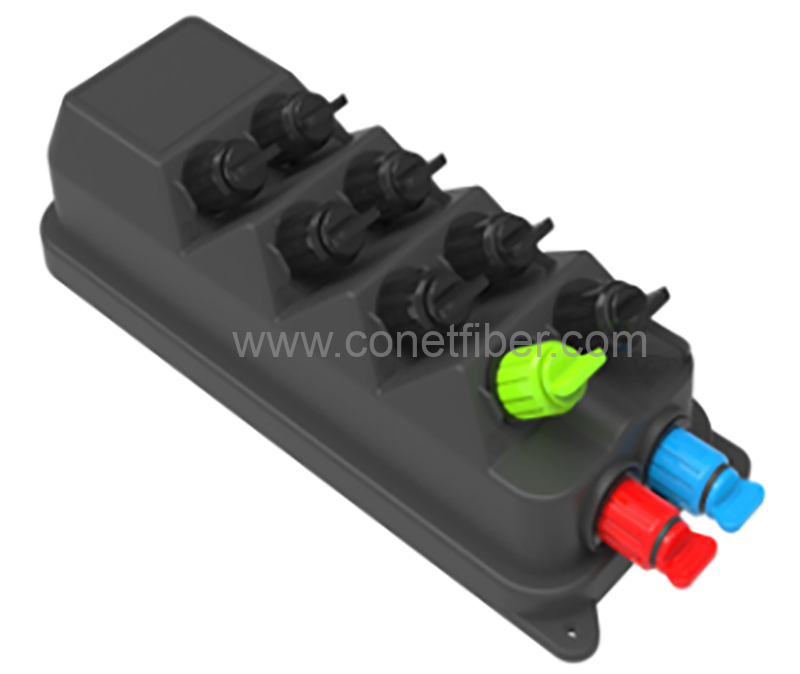

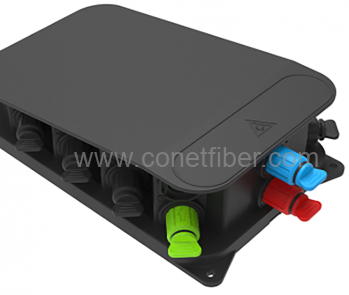

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs

Characteristics

1.The bottom shell and the upper cover are fixed with screws,removable.

2. Material: PP+GF.

3. Moisture proof, waterproof, dust-proof, anti-aging.

4. Protection level up to IP68.

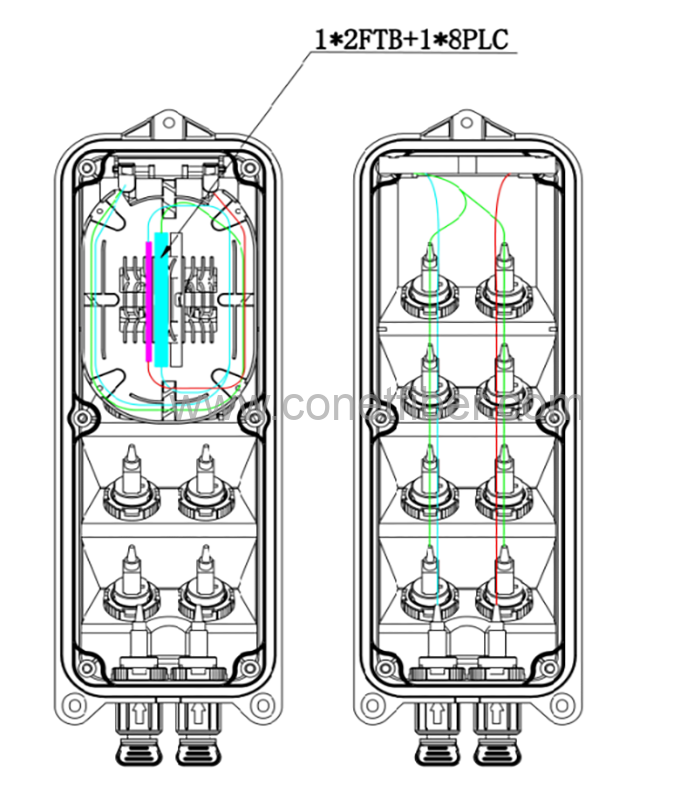

5. The interior is equipped with 1x2 FBT splitter+ 1x8 PLC splitter or  1x8 PLC splitter......

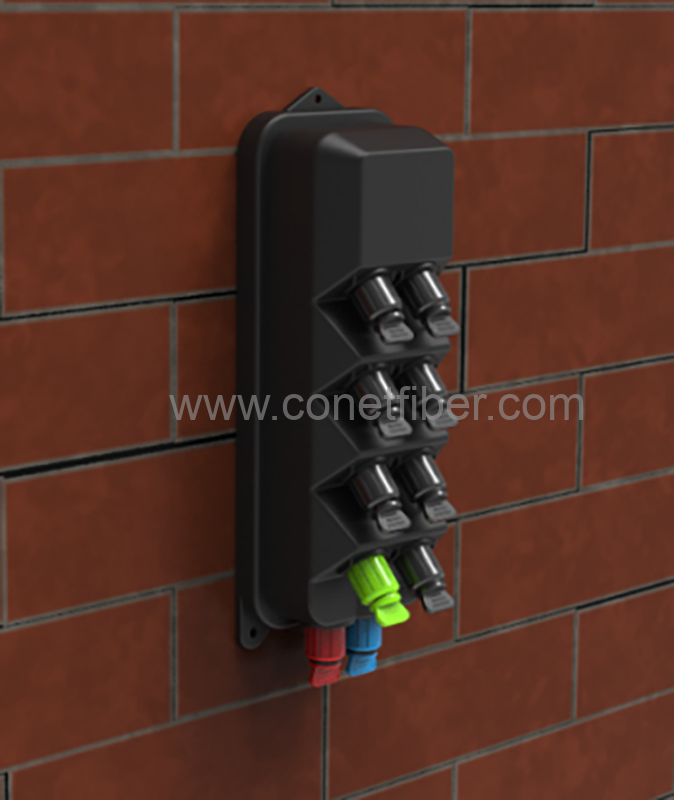

6. Installation method: pole-mounted, aerial-mounted, wall-mounted.

Specifications

Dimension(mm)

264*100*66.5mm

Splitter

1x2 FBT splitter+ 1x8 PLC splitter

Number of Pre-connectorized adaptors10(1 red,1blue,1green,7 black)
IP gradeIP68
Operation temperature-40 ºC～+65 ºC
