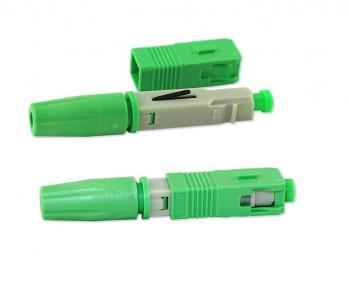

ESC925T-APC/UPC Fast Connector
◆Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
◆Product Length: 53.5mm(without soft tail)
◆Cable: Mainly Suitable for 3.0*2.0mm Drop Cable, Ф 3.0mm, Ф 2.0mm Round Cable, Compatible with 2.0*1.6mm Drop Cable, Ф 0.9mm Round Cable
◆Fiber: G657A1, G657A2, G657B3, Fiber Diameter 125μm, Coating Diameter 250μm & 900μm
◆Operating Temperature: -25℃~+75℃
◆Application: FTTH
Share:
  • Technology Specs
  • Instructions Manual

Item

Unit

Parameters

Insertion loss

dB

AVG≤0.3MAX≤0.5

Return loss

dB

APC≥50,UPC≥45

Tensile Strength

N

≥30Ф0.9mm Round Cable≥5

Mechanical Endurance

Times

500

Repeat Assembly

Time

3

Assembly Time

Min

Drop Cable≤2

Round Cable≤4
