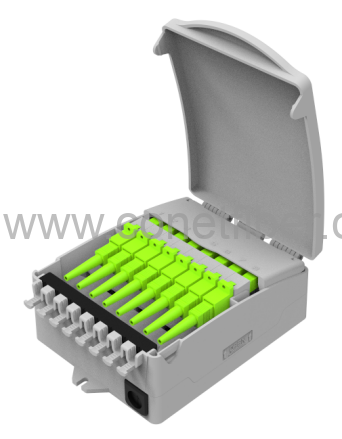

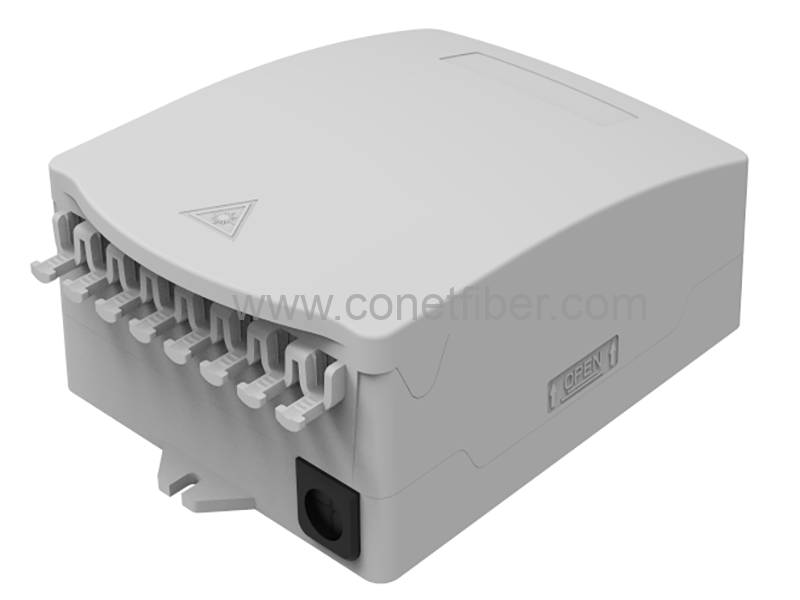

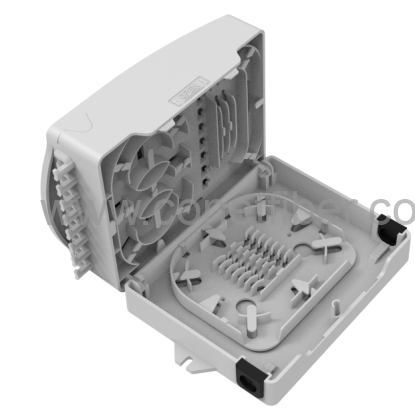

Distribution Box 8ZX
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
1.Total enclosed structure.
2.Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP54。
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4.Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted .
Share:
  • Technology Specs

Dimension(mm)

151.8*105.7*59
Max Capacity12 cores

IP protection level

IP54

Materia

PC+ABS

Operation temperature-40 ºC+65 ºC
