CNT-9001

9 Series of Horizontal nut seal fiber optical splice closures?are designed with a circular arc or arc-type clamshell housing, which is convenient for operation and can be opened with a specialized tool. The cover and bottom of the closures are sealed and fixed with screws, which is convenient for installation. The equipped elastomeric sealing component can ensure a good airtightness when it is repeatedly opened and used. This series of closures are suitable for the protection of various straight-through and branching connectors, and can be used for buried, manholes, pole mounting, wall and aerial installation

Email: export@conetfiber.com

START ORDER

Technology Specs

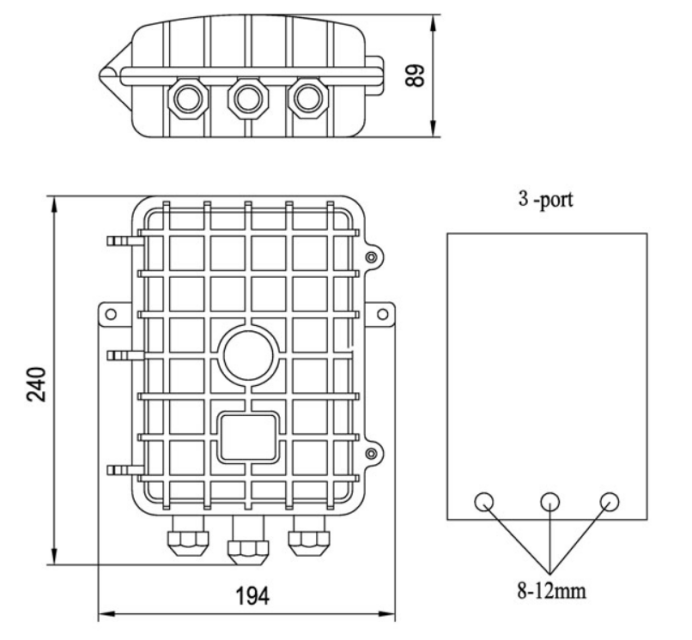

Drawings

Features

Advanced internal structure design

Easy to re-enter, it never requires re-entry tool it

The closure is spacious enough for winding and storing fibers

Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°

The curved diameter meets with international standard

Easy and fast to increase and reduce FOSTs

Applications

Suitable for bunchy fibers

Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting

Core capacity(Max.)			Optional Assemble		*Outside Dimension(LWH)MM*	Cable Diameter (mm)	Straight-through	Model
24	48	/	N	N	24019489	3*round:12mm	N	CNT-9001
72	96	/	N	N	470200120	4*round:20mm	N	CNT-9002
84	168	288	N	N	504242130	6*round:20mm	N	CNT-9003
156	312	648	N	N	504242195	6*round:20mm	N	CNT-9004
144	288	576	N	N	536265210	4round:20mm 2round:40mm	Y	CNT-9005
192	288	576	N	N	510262190	4round:20mm 2round:40mm	N	CNT-9006
240	480	1644	N	N	595287205	4round:20mm 2round:40mm	Y	CNT-9007
96	192	432	N	N	510243132	8*round:16mm	N	CNT-9010
