1、Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
Model | Description | Size（Pic 1） | Max Capacity | Installation Size(Pic 2） | |
A*B*C(mm) | Splitter | Splice | A*B (mm) | ||

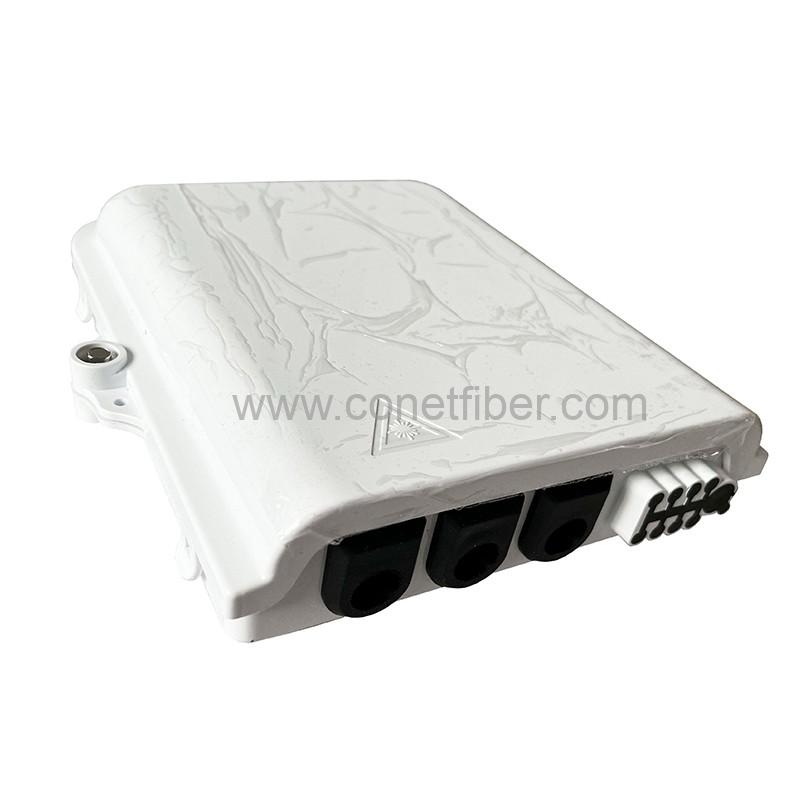

8E-1 | Splitter Box | 227*181*54.5 | 8 | 2 | 81*120 |
