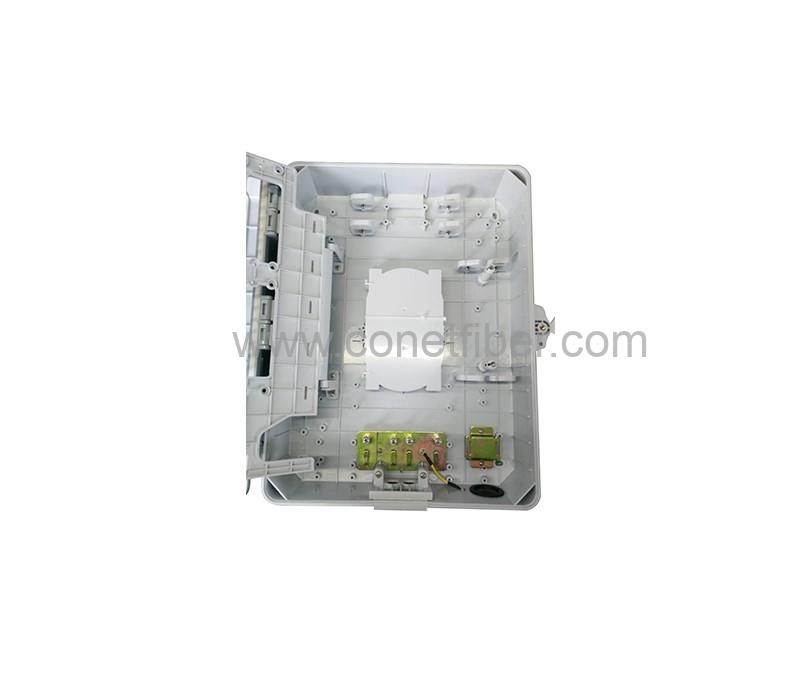

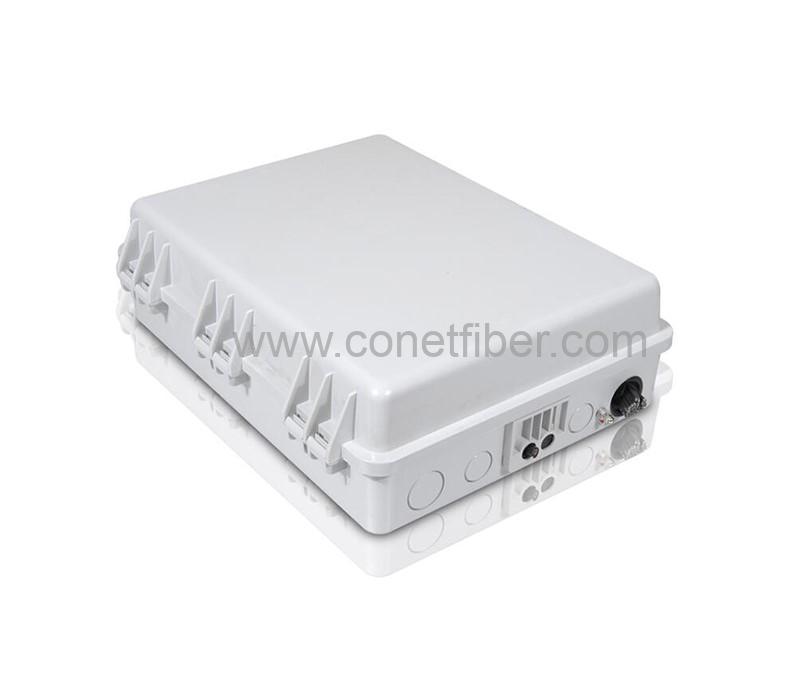

CNT-32B/36B/48B
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Email: export@conetfiber.com
Share:
START ORDER
  • Technology Specs
  • Drawings


Model No.

CNT-32/B36B/48B

Dimension(LXWXH) mm

420x320x125

Installation

Wall mounting(Indoor/Outdoor)
      Pole mounting

Protection Level

IP65

Cable Entries

Supporting Uncut

Max Cable Diameter

Max Input=⌀15mm
      Max Output=2.0x3.0mm

No. Of Adapters & Splitters

48pcs SC SX,

48pcs LC DX

Packing Information

G.W.: 30kg
      QTY.: 6 pcs/Carton
      MEAS.:73x44x48cm
