1、Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC）；
IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture, no flashover；U≥3000

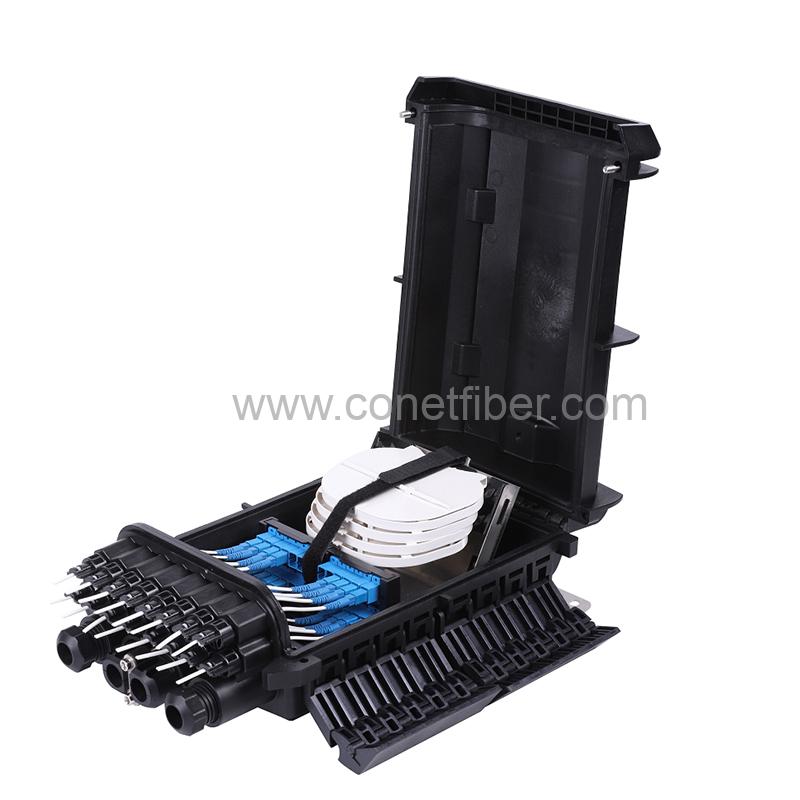

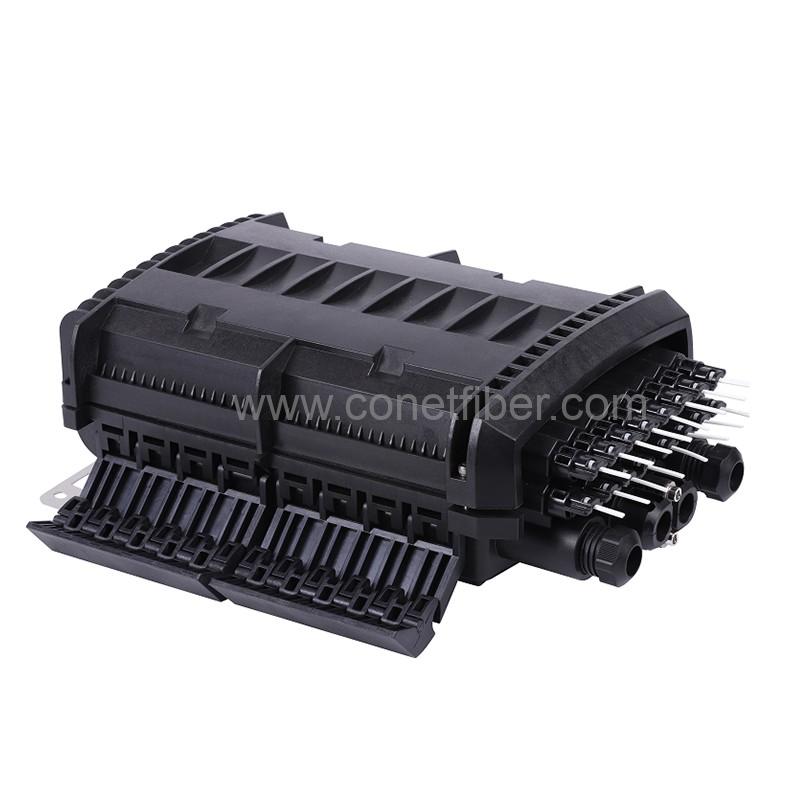

Model No. | CNT-24C |
Dimension(LXWXH) mm | 380x243x130 |
Installation | Wall mounting(Indoor/Outdoor) |
Protection Level | IP68 |

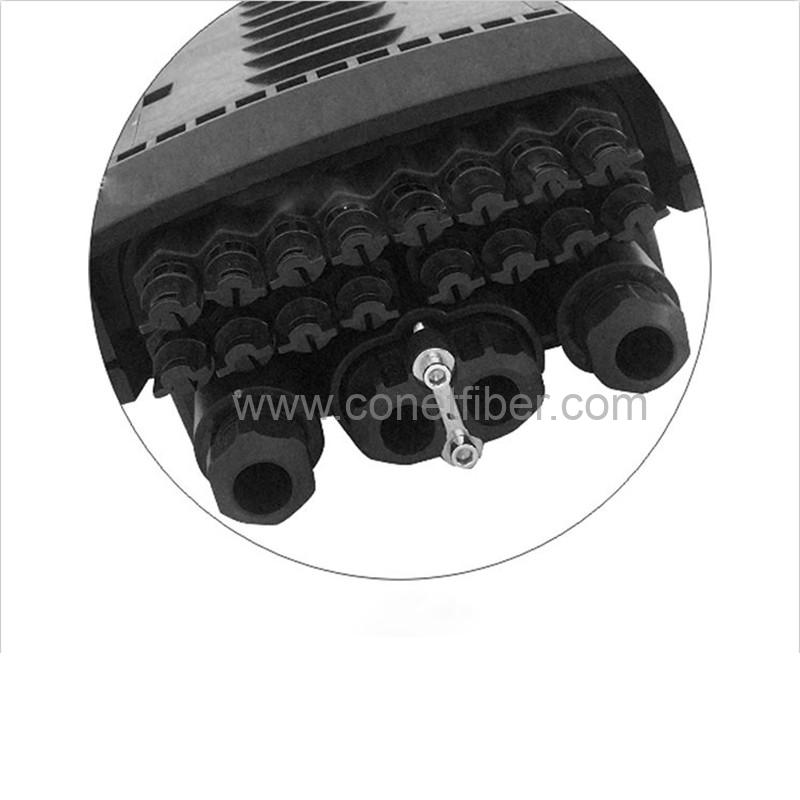

Cable Entries | Supporting Uncut |
Max Cable Diameter | Max Input=⌀16mm |
No. Of Adapters & Splitters | 24pcs SC SX, |
Packing Information | G.W.: 18.7kg |
