1、Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC）；
IR≥2MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture, no flashover；U≥3000

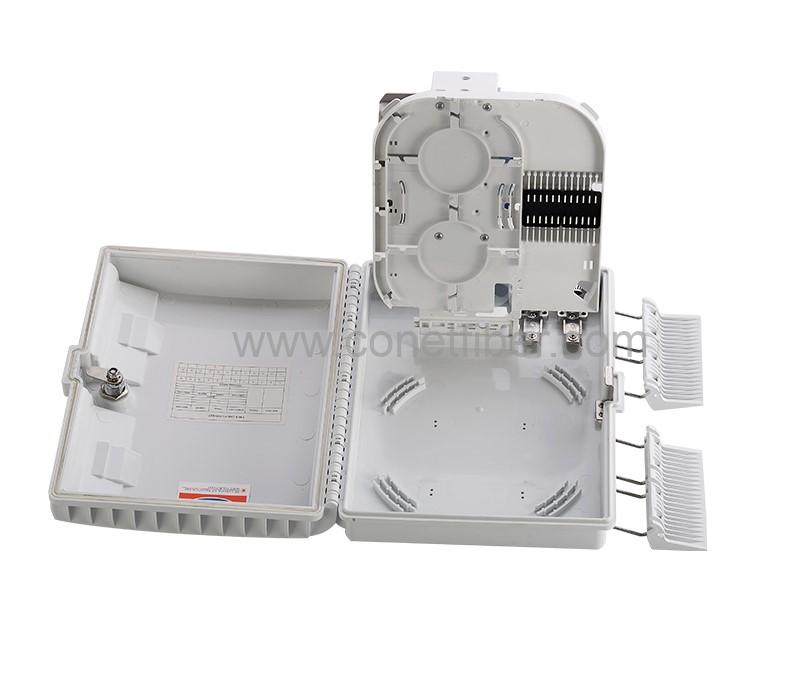

Model No. | CNT-16G-1 |
Dimension(LXWXH) mm | 293x219x84 |
Installation | Wall mounting(Indoor/Outdoor) |
Protection Level | IP65 |
Cable Entries | Supporting Uncut |
Max Cable Diameter | Max Input=⌀18mm |
No. Of Adapters & Splitters | 2pcs 1x8 Splitter Cassette, 1pcs 1x16 Splitter Cassette |
Packing Information | G.W.:16.8kg |
Accessories: 1. Users' Manual*1。 2. Key*1。 3. Accessories Bag * 1 |
