IP 67

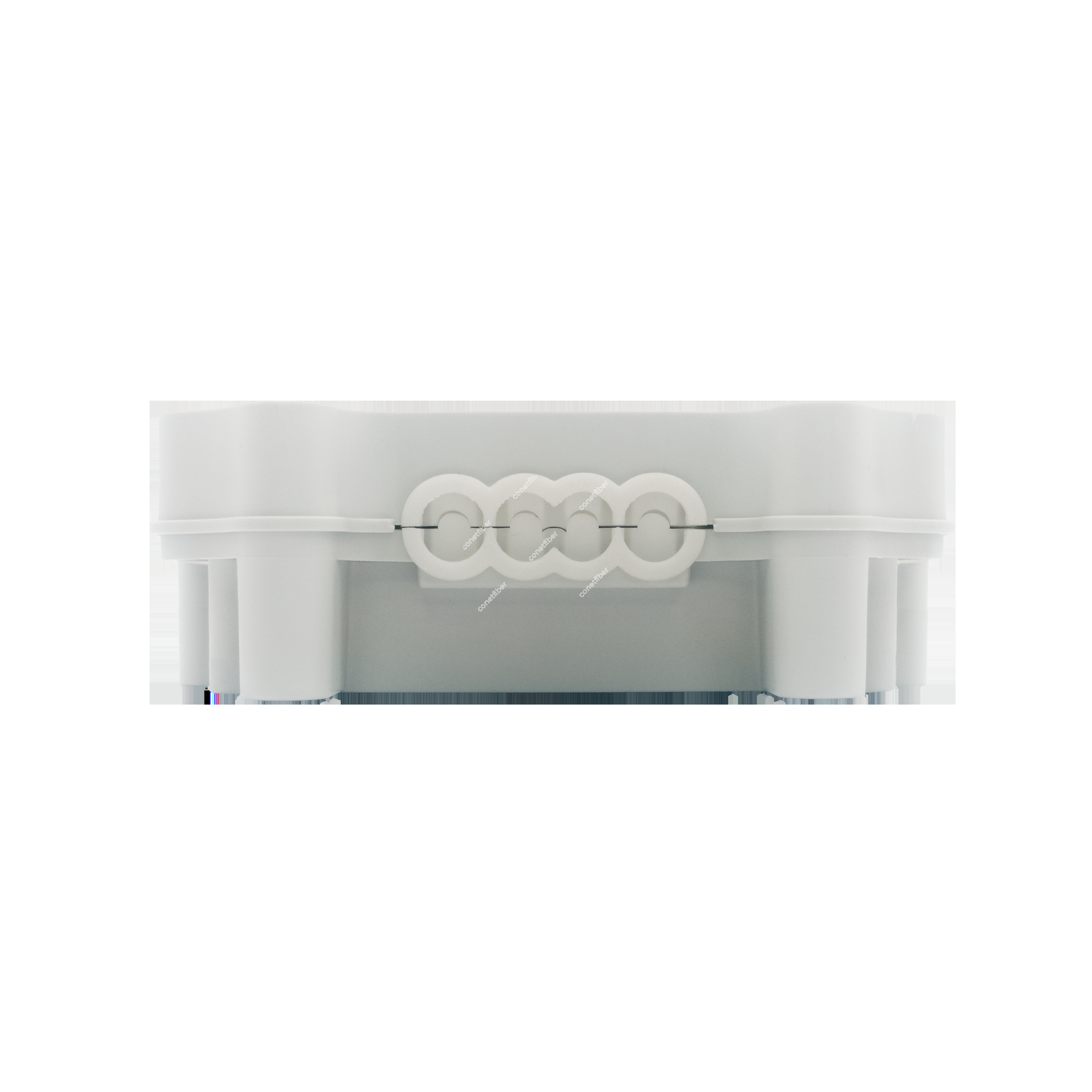

4 entry port from 5,3mm to 6,3 diameter

48 splicing

Application

FTTH GPON/GEPON network

Telecommunication network

Community Antenna Television Network(CATV Network)

Data transmission networks

LAN

Specifications

Max Capacity of Splice:2~48 (single fiber)

Cable Ports:1 inlet ports,3 outlet ports

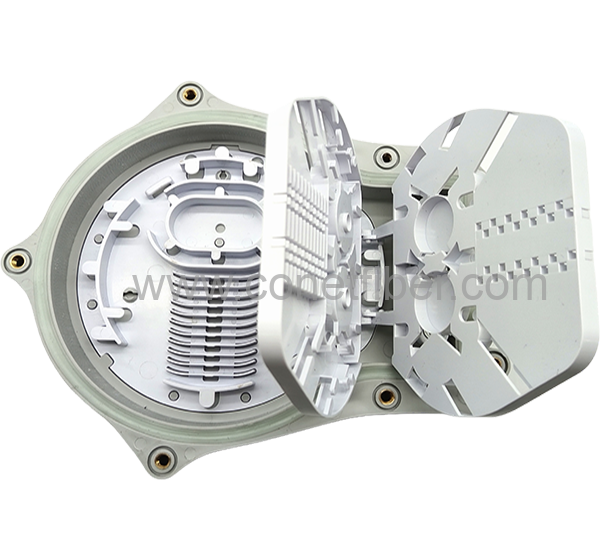

Up to 4 cassettes,24 splicing per cassette

Material: PP70% GF%30 UV protected

Dimension(L*W*H(mm)):181*220*45

Operation temperature:-40℃ to+70 ℃
