Item | CNT-010 | Cable ports | 4 ports |
Number of fiber fusion | 24-48 Cores | Capacity of splice tray | 12 cores tray |
Dimension (mm) | 300×∅120mm | Package | 1pcs/inner carton 6pcs/outer carton |
Cable diameter(mm) | 1x Oval:Φ26x38mm 3x Round:Φ18mm | Max capacity of fiber | 48 Cores |
Working temperature | -40℃~65℃ | ||
Sealing Type | Heat shrink sealing | Installation Type | Pole-Mounted/In-line |
NO. | Name of components | Quantity | Usage | Remarks |

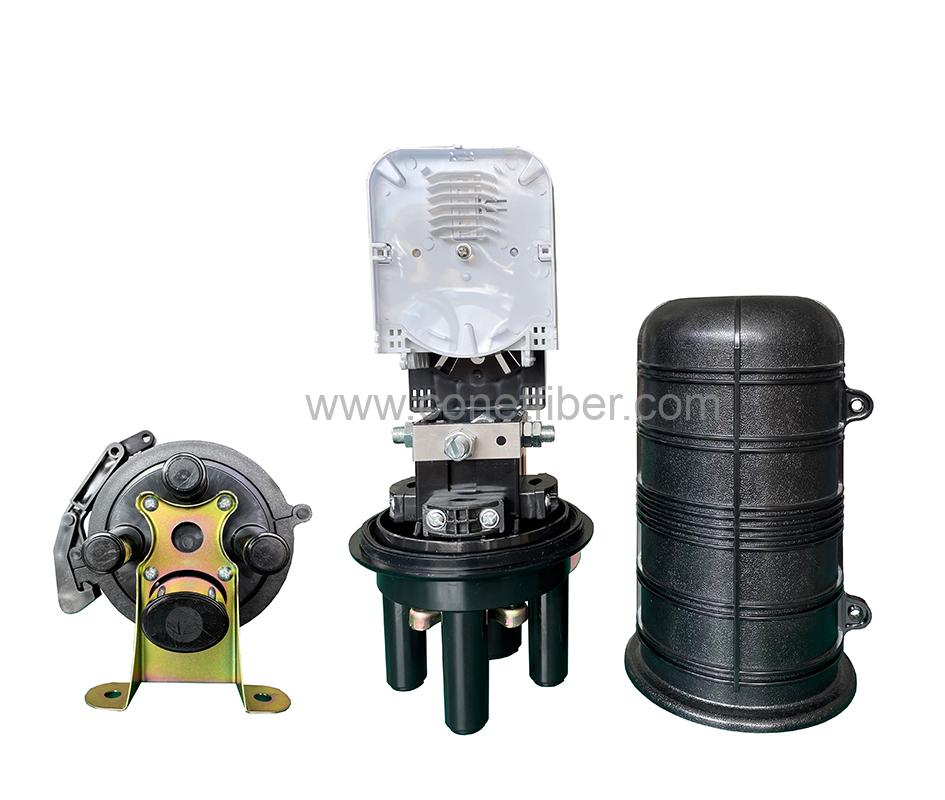

1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | |

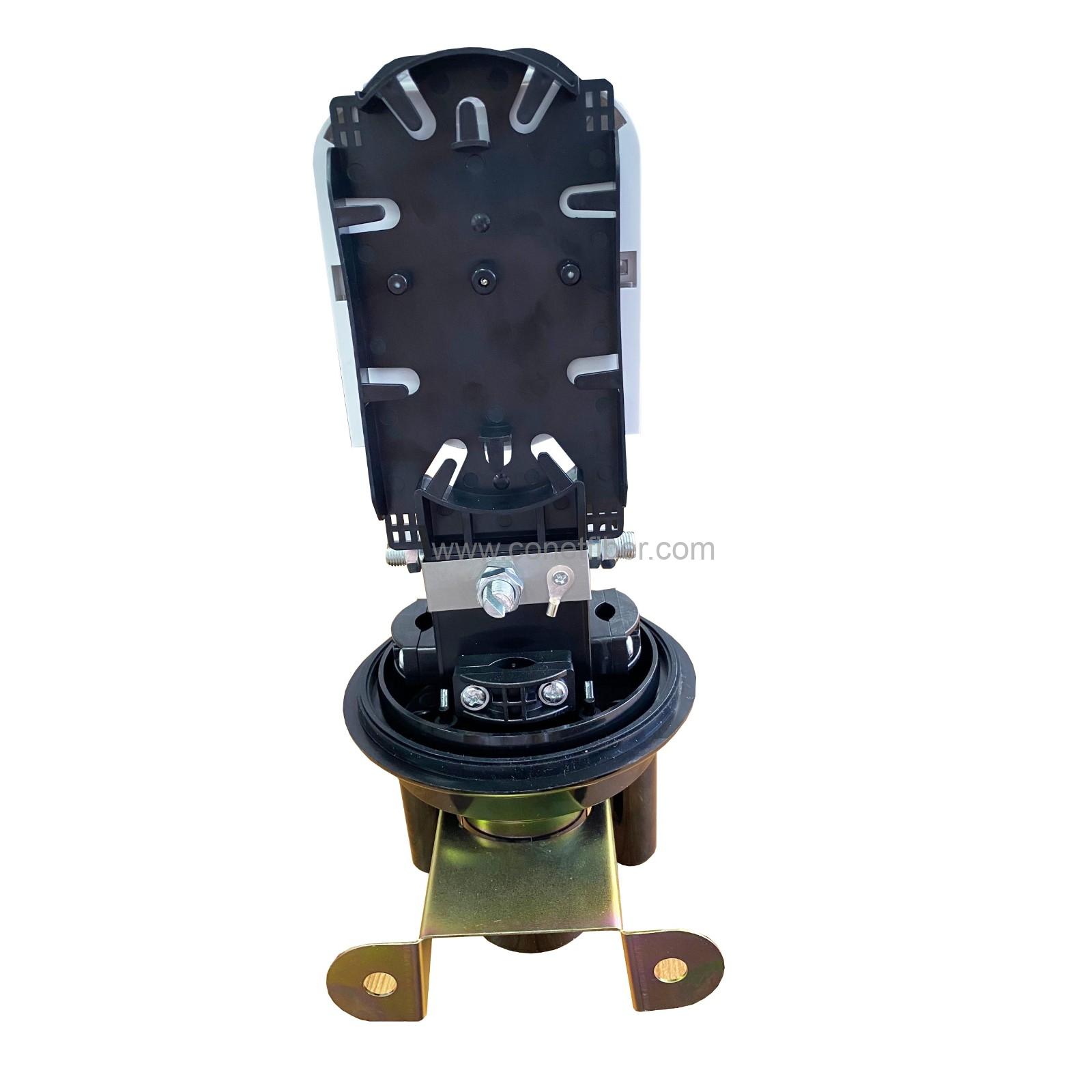

2 | Fiber optic splitter tray | 4 trays for 1x12
| Fixing heat shrinkable protective sleeve and holding fibers | Suitable for: 48 cores |
3 | Fiber holding tray | 1 piece | Holding fibers with protective coat | |
4 | Foundation | 1 set | Fixing fiber cable, reinforced core and FOST | |
5 | Base | 1 set | Fixing internal and external structure | |
6 | Seal fitting | 1 piece | Sealing between FOSC cover and base | |
7 | Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
8 | Earthing deriving device | 1 set | Deriving metallic parts of fiber cable in FOSC for earthing connection | Configuration as per requirement |
NO. | Name of accessories | Quantity | Usage |
1 | Heat shrinkable protective sleeve | Protecting fiber splices | |
2 | Nylon tie | Fixing fiber with protective coat | |
3 | Heat shrinkable fixing sleeve (single) | Fixing and sealing single fiber cable | |
4 | Seal tape | Fixing and sealing mass of fiber cable | |
5 | Branching clip | Branching fiber cables | |
6 | Earthing wire | 1 piece | Putting through between earthing devices |
7 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air |
8 | Labeling paper | 1 piece | Labeling fiber |
9 | Special wrench | 1 piece | Tightening nut of reinforced core |
10 | Metal hoop | 1 set | For wall mounting and pole hugging |
11 | Buffer tube | To be decided by customers | Hitched to fibers and fixed with FOST, managing buffer |
12 | Aluminum-foil paper | 1 piece | Protect the bottom of FOS |
